The MC-VCM is a rugged, flyable video conversion and switching module designed for modern mission systems. It seamlessly integrates sensors, cameras, displays, and HUDs with the ARINC 818 architecture. Built for demanding environments, the MC-VCM delivers reliable performance in platforms such as turboprops and helicopters.
Each MC-VCM is factory-configured for one of the following:
-
Multi-Protocol Conversion: Up to 12 channels, including ARINC 818, DVI/HDMI, Ethernet (1G/10G), HD/3G-SDI, NTSC/PAL, or STANAG 3350
-
Cross-Point Switching: ARINC 818 switching up to 12x12, supporting mixed link rates, and up-conversion
To discuss your specific application and system needs, please contact our Sales Engineers.

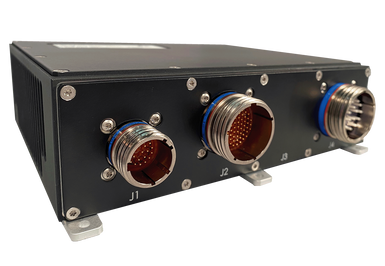

MC-VCM
Multi-Channel Video Converter Module
Features:
-
Up to 12 channels of conversion with or without switching
-
Accommodate multiple link rates (up to 8.5 Gb/s) and ICDs in a single MC-VCM, using fiber and/or copper physical layers
-
We support protocols including HOTLink, DVI/HDMI, Ethernet 1G/10G, HD/3G-SDI, NTSC/PAL, or STANAG 3350
-
Command and control via Ethernet, ARINC 429, and RS-485/422 interface
-
Conduction cooling
-
50ms power hold up
-
SEU monitoring and reporting
-
Stale video monitoring and reporting
-
28 V power input per MIL-STD-704F and RTCA DO-160G
-
Switch can be user-configured to accommodate ICD changes
Environmental/Regulatory:
-
HIRF protected, EMI shielded design
-
Ruggedized and suitable for helicopter or turbo-prop applications
-
Certifiable to DO-254
Optional Features:
-
Automatic ICD detection, switch can be user-configured to accommodate ICD changes
-
Image scaling, cropping, compression, and concentration
-
ELIO termini
-
Real-time ancillary data updating
-
Brightness, contrast, gain/offset control
-
Switching with mixed link rates and link rate up-conversion
-
Freeze frame
-
Diagnostics and debug: optical power measurement, SDI eye opening, test pattern/overlay generation
Example Avionics System Block Diagram:
