ARINC 818: MATRIX PLUS

GRT can factory configure a single Matrix Plus card for up to 15 ICDs using up to four different link speeds. Each mode matches one of your ICDs: link speed, image resolution, and pixel format. Matrix Plus cards support interfaces from 1 to 4 Gb/s. A single card can function as a receiver or a transmitter for ARINC 818.

Features
Specifications

Features

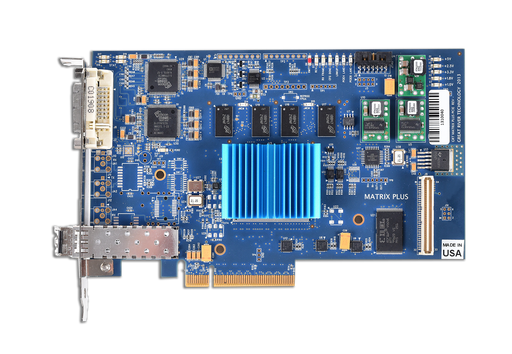

Matrix Plus is a full-featured, high speed ARINC 818 frame grabber, graphics generator and video converter.  It comes with a powerful test application.  Optional SDK is available for purchase.

​

Support link rates up to 4.25Gbps

Factory configured for 1-15 ICDs.

​

SDK - An optional Windows- or Linux-based Software Development Kit (SDK) enables faster development of real-time image and data acquisition systems, camera and sensor emulators, video generators, or other video-intensive applications. The SDK includes a user guide, sample code, and four hours of technical support.

ARINC 818 Receiver & Converter

Matrix Plus cards can capture ARINC 818 video to the software GUI and permit real-time viewing of embedded ARINC 818 data. The cards have a dedicated DVI video port to view the incoming ARINC 818 video on a monitor

  • Line Spy: Echoes out incoming ARINC 818 in real-time

  • Receive and Display ARINC 818 to GUI

  • Capture Video Stream over the PCIe Bus (using StreamPix software)

  • Convert ARINC 818 to DVI


ARINC 818 RX

ARINC 818 Transmitter & Converter

Load test images and embedded header data into the Matrix Plus card and transmit using the test software.

  • Convert DVI to ARINC 818

  • Transmit known test patterns over ARINC 818

  • Load real-time images over the PCIe

ARINC 818 TX
ARINC 818 Converter

Test Application

  • Real-Time monitoring of link status and health

  • Display incoming video to GUI or convert to DVI

  • Image compare feature

  • Transmit from pre-recorded video

  • Zoom on regions of interest

  • Explore & Configure Ancillary Data and Container Headers

A818 Converter VGA
