The Helios offers up to 12 channels of ARINC 818-to-HDMI or HDMI-to-ARINC 818 conversion in a 1U 19-inch rack mountable system. The ARINC 818-to-HDMI version provides a way to view live ARINC 818 video on common HDMI monitors. HDMI outputs can also select one of several ARINC 818 inputs, making it well suited for connection to an HDMI recorder. The HDMI-to-ARINC 818 version provides an easy method of transferring HDMI video onto ARINC 818.


​

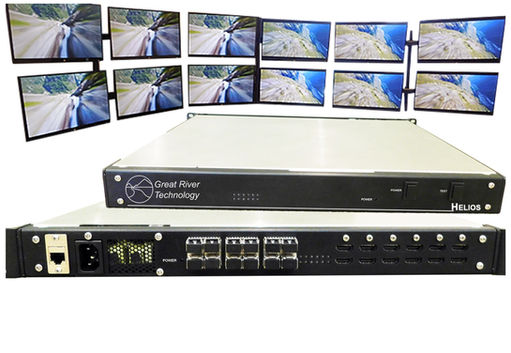

HELIOS: MULTI-CHANNEL ARINC 818/HDMI CONVERTER SYSTEM

USEFUL LINKS

Features
Specifications

Features

  • Modular factory configurations for 4, 6, 8, or 12 channels

  • 19 inch 1U rack mount, 15 inch deep

  • 100-240 VAC (28 VDC option)

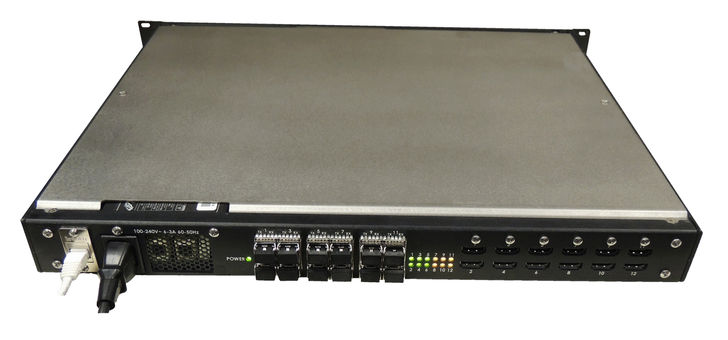

  • HDMI connectors (6 locking/6 standard)

  • SFP Optical with LC connectors

  • A818 to HDMI or HDMI to A818

  • A818 link rates from 1x to 8x

  • Remote Based controls (LAN) with C API or Web Interface

    • Query Status

    • Real-time Object 0 Update

    • Control Test Pattern Outputs

Applications

  • Pilot Training Simulators

  • Cockpit Development

  • Flight Test Recording of ARINC 818

    • Requires Separate Recording Hardware

  • Factory Test of ARINC 818 Equipment

Resolutions

  • XGA(1024x768) @ 60Hz

  • SXGA(1280x1024) @ 60Hz

  • SXGA+(1400x1050) @ 60Hz

  • WXGA(1440 x900) @ 60Hz

  • UXGA(1600x1200) @ 60Hz

  • HD(1920x1080) @ 60Hz/30Hz

  • 4K(3840 x 2160) @ 30Hz

  • More resolutions availble, call to inquire

Screenshot 2023-12-07 at 12.22.07 PM.png

Example Configurations
